Andy Vision Remote Control Operating System
ST-2000 fixed-position remote control pan/tilt operating system is suitable for camera remote control and for camera location which is unsuitable for cameraman to appear. The complete system includes electronically controlled pan/tilt head, control panel, pan/tilt control motor assembly, zoom/focus/iris motor assembly, T-bracket, remote control cable.
Features:
• Control panel supports camera pan & tilt movement, focus & zoom & iris, infinitely variable speed control of pan & tilt, focus & zoom & iris and ramp control.
• Supports camera REC start / stop, control panel adopts AC and DC dual power supply, adaptable for AC 110/220V.
• Standard for Canon lens (8 pin)
• Optional: Canon lens (20 pins) and Fuji lens (12 pin) adapters
Parameters:
Payload: 30kg/15kg ( ANDY-HR1A / ANDY-HR1 )
Suitable for tripods: Flat or 100mm/150mm bowls, can be hanged upside down.
Remote control distance: Standard cable 10meters, max can extend to 100meters.
Horizontal rotation: 360 degrees, max 900 degrees
Vertical rotation: ±90°
Rotation speed: 0.01°1s ~ 30°1s
Control lens: Standard Canon 8pin camera lens
Optional: Fuji lens adapter / Canon full servo lens adapter

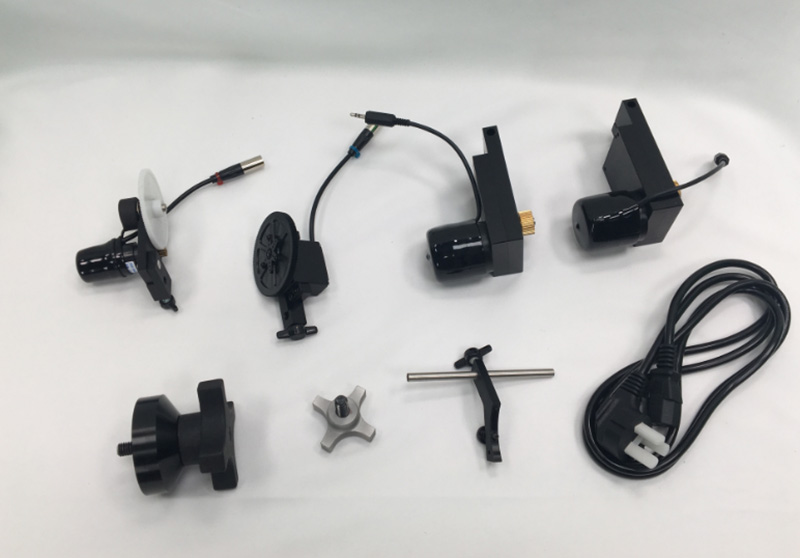

Configuration:
• Electric remote control head
• Remote control panel
• Pan/Tilt motor assembly
• Zoom/Focus/iris lens servo assembly
• T bracket
• Remote control cable
• Hard case
