Dolly and pedestal
Max moving speed 3m/s
Max up and down speed 0.6m/s
Up and down（m）1.2-1.8
Max Track length 100m
Track width 0.36m
Base width 0.43m
Camera Robot dolly Max payload 200Kg
overall weight≤100Kg
conroling distance 1000m
System energy
stable electricity DC24 or AC220V
Energy consumption≤1Kw
System characteristic
preset position 20pcs
virtual input: optional
Remote head
interface CAN RS-485
remote head pan 360°
remote head tilt±80°
remote head side rotating ±60°
Max angle 90°/s
stability accuracy≤80 micro arc
remote head payload ≤30Kg
data output：FREE-D
3. Technical and State of Art Hilight
A. It adopts the most advanced gyroscope remote head technology.
B. It adopts high strength alloy material and crafted moulded out.
C. Dolly moving adopts 2 sets of DC motor synchronous driving servo, track moving adopts three-direction positiong method.
D. Control panel can pre set moving speed, as well as position preset, speed up preset. Meanwhile, it can be manual controlled.
4. Features as advantage with comparison
Stable three-axis electronically controlled remote head with gyroscope, making pan tilt, side retating more stable and smooth, the system can be set as automatic and manual control, and can be equipped with camera displacement data output function, to work with VR/AR studios, and it can be preset to run Speed, position, speed up and so on. Autopilot, control freely.
5 Configuration and function

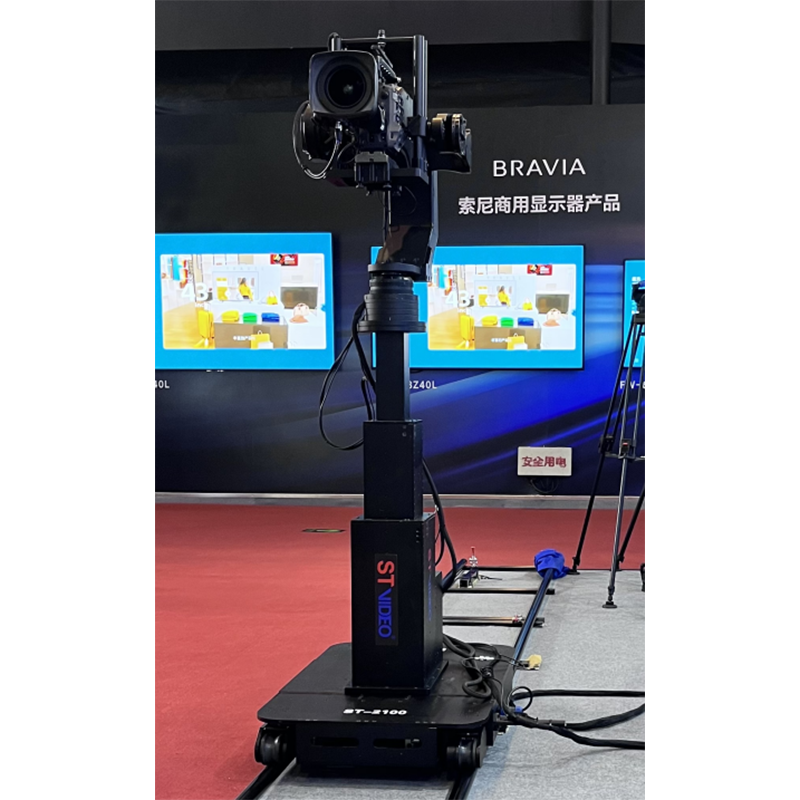

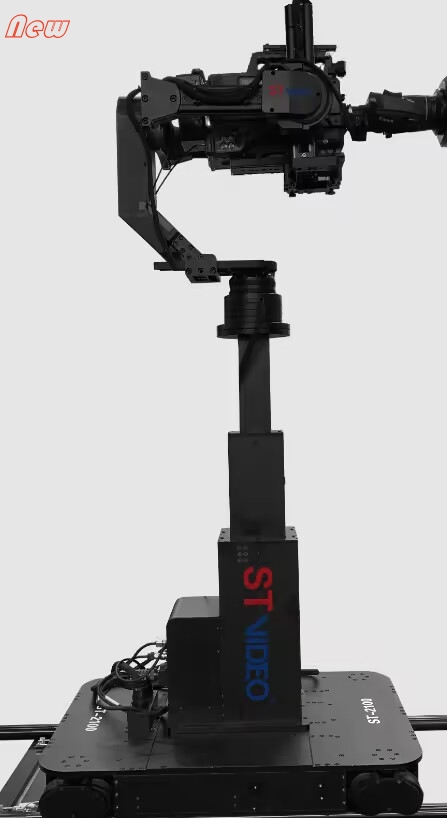

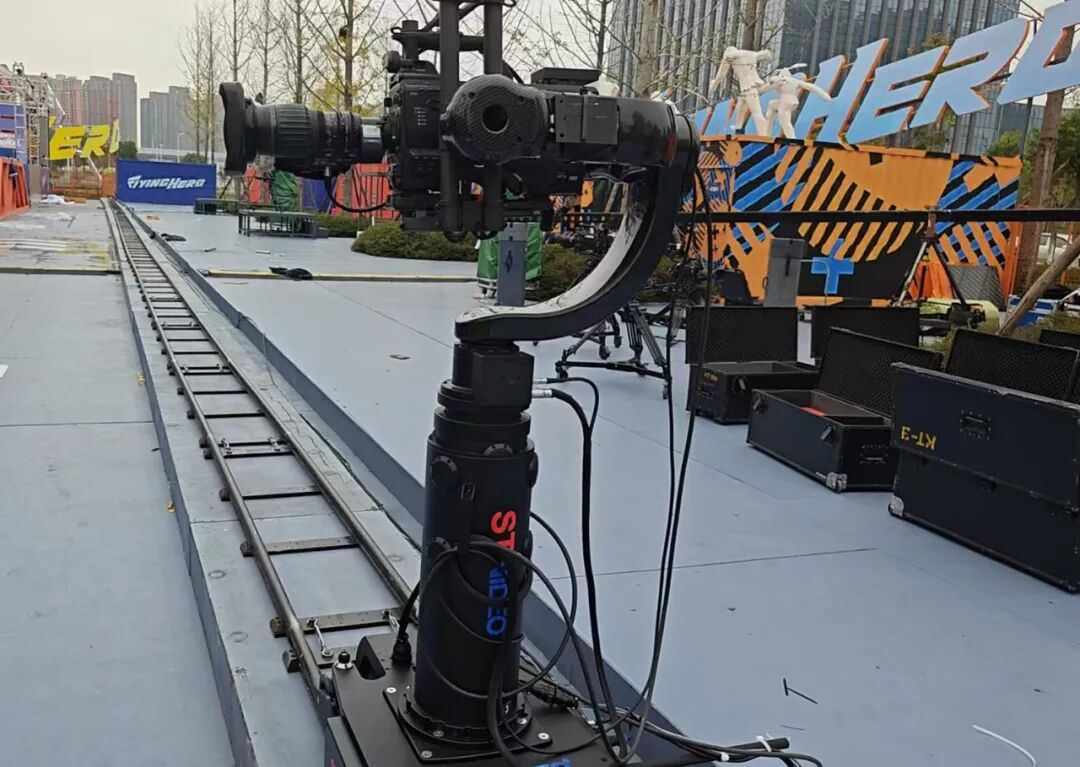

Gyroscope Robot ST-2100 is consisted of dolly, pedestal, gyroscope remote head, control panel etc. It is made by high strength alluminum alloy, with exquisite appearance.

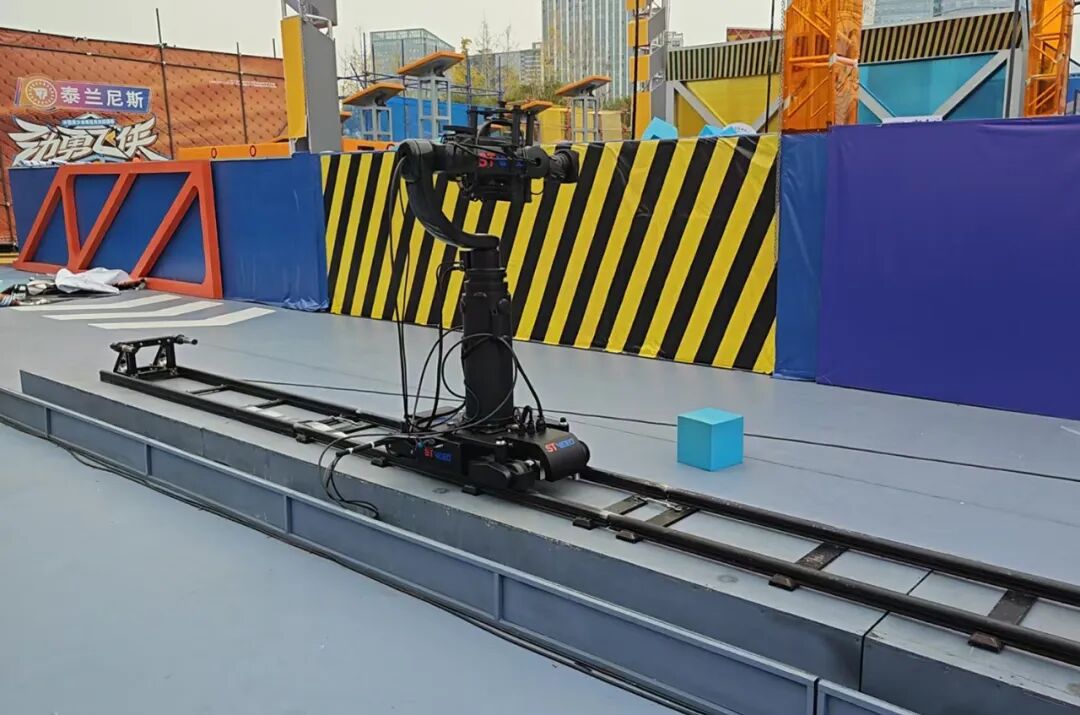

The dolly adopts three-direction positioning track moving mode, with motion backed up by 2 sets of DC motor synchronous driving servo, running smooth and controlling the direction precisely.
The lifting column is designed with three-stage synchronous lifting mechanism, lifting travel large. And multi-point positioning is adopted, making the lifting movement of the column smooth with low noise.
The gyroscope head adopts a U-shaped structure design, which bears weight up to 30KGS, and can meet the installation and use of various types of broadcast cameras and cameras.
Through the control panel, it is easy to control camera raising, lowering, pan & tilt, shifting, side-rolling, focus & zoom and other functions.
It can be used with VR/AR studios with displacement data output function.
It can preset the running speed, with 20 preset positions, preset speed up, etc..
It can also be controlled manually.
Autopilot, control freely.
