TELESCOPIC CAMERA TOWER
Product Description:
The ST-TCT series lifting columns have a unique design for the stiffness and strength of the column. Level 8 winds will not damage the normal operation of the self-standing columns . Since there is no need for wind rope protection, the erection time is greatly shortened, the erection personnel are reduced, the requirements for the use site are reduced , and the system’s rapid response capability is improved. The product adopts: ladder screw drive, the lifting process is smooth and reliable, and it can self-lock at any position. The circular cross-section cylinder has good guiding properties, and the cylinder has good bending and torsion resistance. Under the same conditions, it has smaller sway and lower torsion angle than other forms of lifting columns . The electric column is linked to lift and is compatible with manual lift and wireless remote control. Rubber sealing rings are used between columns to improve the waterproof, sandproof and ice-proof performance of the lifting column . The cylinder is hard anodized and has good anti-corrosion properties.
types of electric lifting column control: standard type and intelligent type . The standard type only provides “raising, lowering and stopping” operating functions.
Product Description :
ST-TCT-10 series lifting columns are elevated equipment carriers, suitable for land, vehicle, or ship mounting. It can quickly, reliably and safely raise communication antennas, lighting, lightning protection, optical transmission and camera equipment to a predetermined height. It has strong wind and impact resistance and a wide range of uses.
specification:
Lifting power
electric
unfolded height
10m
closing height
2.5m
load bearing
50kg
control method
Wired and wireless remote control
Remote control distance
≥50 meters
Material
Aluminum shell
safety
Stop at any height and there will be no loss of altitude.
System working voltage
AC220V
environmental adaptability project
Test conditions
Wind resistance
Level 8 winds work normally and level 12 winds do not cause damage. GJB74A-1998 3.13.13
low temperature work
-40°
High temperature work
+65 °
humidity
Less than 90% (temperature 25°)
caught in the rain
Intensity 6mm/min, duration 1h
-
Gyroscope Robotic Camera Dolly ST-2100
Dolly and pedestal
Max moving speed 3m/s
Max up and down speed 0.6m/s
Up and down（m）1.2-1.8
Max Track length 100m
Track width 0.36m
Base width 0.43m
Camera Robot dolly Max payload 200Kg
overall weight≤100Kg
conroling distance 1000m
System energy
stable electricity DC24 or AC220V
Energy consumption≤1Kw
System characteristic
preset position 20pcs
virtual input: optional
Remote head
interface CAN RS-485
remote head pan 360°
remote head tilt±80°
remote head side rotating ±40°
Max angle 90°/s
stability accuracy≤80 micro arc
remote head payload ≤30Kg
data output：FREE-D -

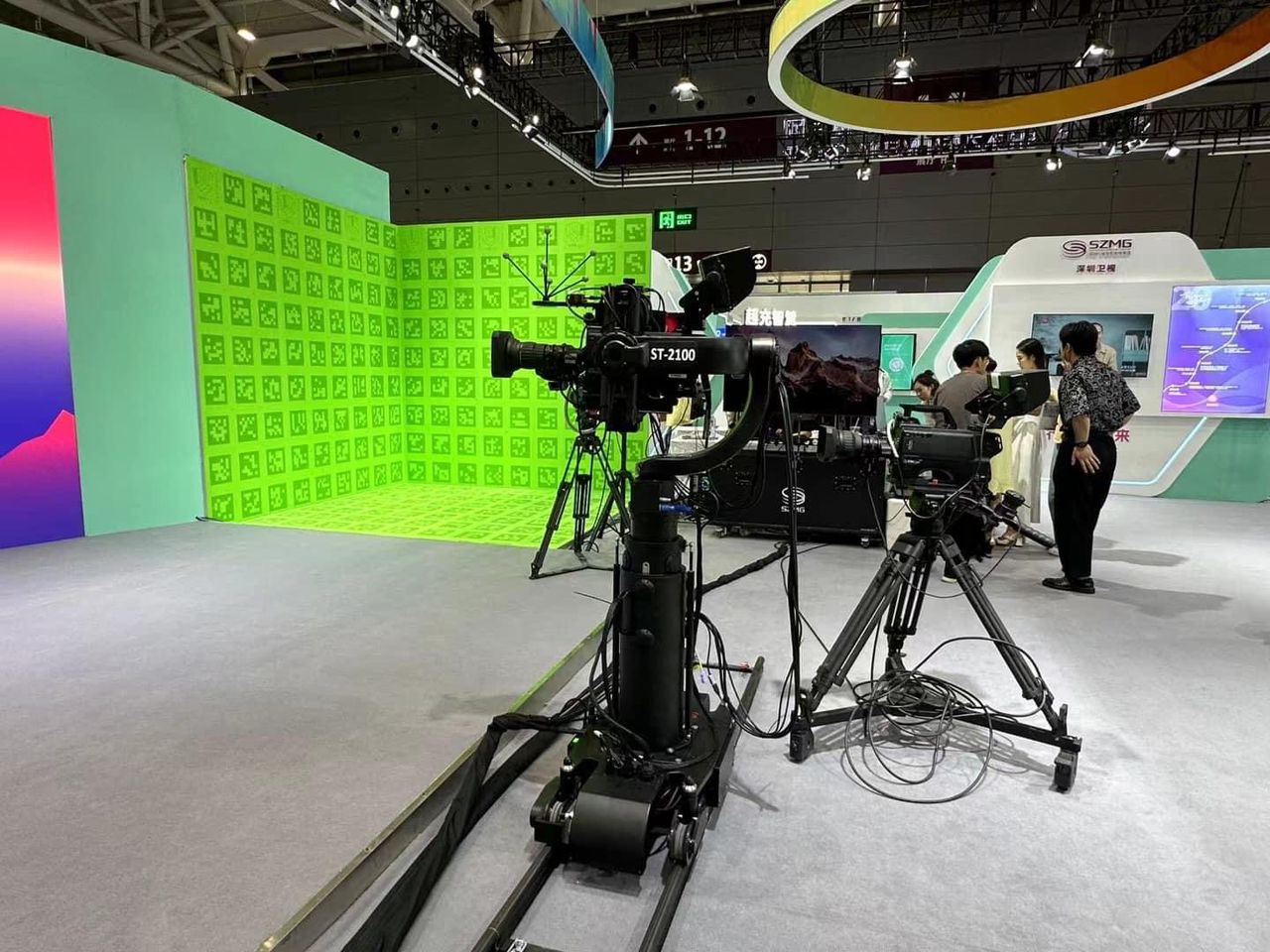

ST-2100 ROBOT TOWER with GYROSCOPE HEAD
ST-2100 Gyroscope Robot is the automatic track camera system independently developed by ST VIDEO over the 7 years, which integrates movement, lifting, pan-tilt control, lens control and other versatile functions. The remote head adopts a gyroscope stabilization system, with a payload capacity up to 30kgs, which can meet the installation and use of various types of broadcast cameras and cameras. The robot dolly is mainly suitable for studio program production, live broadcast of cultural evenings and variety shows, etc.. With the ST-2100, one person can easily control and fulfill camera raising, lowering, pan and tilt, shifting, focus & zoom of the camera. It can be used with VR/AR studios with camera position & displacement data output function.
Features as advantage with comparison
Stable three-axis electronically controlled remote head with gyroscope, making pan tilt, side retating more stable and smooth, the system can be set as automatic and manual control, and can be equipped with camera displacement data output function, to work with VR/AR studios, and it can be preset to run Speed, position, speed up and so on. Autopilot, control freely.
Configuration and function
ST-2100 Gyroscope Robet is consisted of dolly, pedestal, gyroscope remote head, control panel etc. It is made by high strength alluminum alloy, with exquisite appearance. The dolly adopts three-direction positioning track moving mode, with motion backed up by 2 sets of DC motor synchronous driving servo, running smooth and controlling the direction precisely. The lifting column is designed with three-stage synchronous lifting mechanism, lifting travel large. And multi-point positioning is adopted, making the lifting movement of the column smooth with low noise. The gyroscope head adopts a U-shaped structure design, which bears weight up to 30KGS, and can meet the installation and use of various types of broadcast cameras and cameras. Through the control panel, it is easy to control camera raising, lowering, pan & tilt, shifting, side-rolling, focus & zoom and other functions. It can be used with VR/AR studios with displacement data output function. It can preset the running speed, with 20 preset positions, preset speed up, etc.. It can also be controlled manually. Autopilot, control freely.
