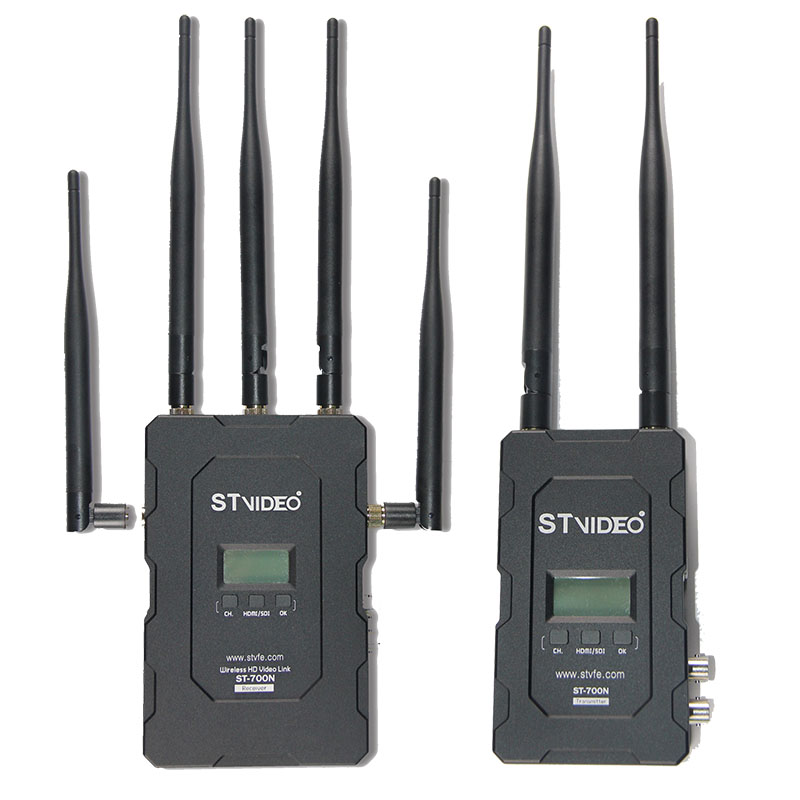

ST-700N Wireless Transmission

ST-700N Wireless Transmission is a long-range transmitter/receiver set allowing you to send up to a 1080p60, 4:4:4, 10-bit HDMI or SDI signal to dual SDI outputs or a single HDMI output. ST-700N offers a transmission range of up to 700m with a latency of <1 ms over the 5.1-5.9 GHz frequency band. The transmitter also has an SDI loop out for local monitoring.

Specification
ITEM DATA
Frequency 5GHz
Transmission Power 20dBm
Antenna External antenna×2
Bandwidth 40MHz
Video Formats 1080p 23.98/24/25/30/50/60                                                                            1080psf23.98/24/25                                                                            1080i50/59.94/60                                                                           720p 50/59.94/60                                                                                        576p 576i 480p 480i
Audio Fromats PCM, DTS-HD, Dolby TrueHD
Transmission Distance ≥700m(Line of sight)
Interface HDMI IN;SDI IN; SDI LOOP; Mini USB; LEMO(OB/2core); POWER IN; RPSMA Antenna; Power Switch
Mounting Interface 1/4 inch screw, V-mount
LCD screen dispaly Frequency;Channel;etc.
Working Voltage DC 6V-17V
Power Consumption 7-8W
Dimensions 126.5×75×31.5mm
Temperature -10~50℃ (Working)                                               -40~80℃ (Storage)

Product Detail

Product Tags

Wireless HD Transmitter:

ST-700N Wireless Transmission

ST-700N Wireless Transmission is a long-range transmitter/receiver set allowing you to send up to a 1080p60, 4:4:4, 10-bit HDMI or SDI signal to dual SDI outputs or a single HDMI output. ST-700N offers a transmission range of up to 700m with a latency of <1 ms over the 5.1-5.9 GHz frequency band. The transmitter also has an SDI loop out for local monitoring.

Signal switch buttons on the front panel let you conveniently make your signal selections while an OLED display on both units provides signal and other status information. The system also supports timecode and features AES-128/-256 data encryption. For power, two 2-pin LEMO to D-Tap cables are included for connecting to compatible batteries, a 2-pin LEMO power supply is supplied for use on the receiver end, and an optional V-mount adapter can be installed into a 1/4"-20 mounting thread on the rear of both units. There's another mounting thread on the bottom of both units, and either can be used to mount the devices. Shoe-mount to 1/4"-20 adapters are included with the set to let you mount to your camera or elsewhere.

Feature:

- No latency, non-compression picture quality
- Support double SDI & HDMI input/output
- Support up to 1080P/60Hz resolution; 4:2:2
- Transmission distance: 300m - 700m (1000ft - 2300ft) line of sight over 5G frequency band. with panel antenna can up to 1.3~1.5km
- Support TimeCode, record command.
- One transmitter works with multi-receivers simultaneously.
- AES-128/-256 encryption

Specifications:

Frequency : 5GHz
Transmission Power : 20dBm
Antenna : External antenna×2
Band width : 40MHz
Video Formats : 1080p 23.98/24/25/30/50/60 , 1080psf23.98/24/25 , 1080i50/59.94/60 , 720p 50/59.94/60 , 576p 576i 480p 480i
Audio Fromats : PCM, DTS-HD, Dolby TrueHD
Transmission Distance : 700m(clear transmission)
Interface : HDMI IN;SDI IN; SDI LOOP; Mini USB; LEMO(OB/2core); POWER IN; RPSMA Antenna; Power Switch
Mounting Interface : 1/4 inch screw, V-mount
LCD screen dispaly : Frequency;Channel;etc.
Working Voltage : DC 6V-17V
Power Consumption : 7-8W
Dimensions : 126.5×75×31.5mm
Temperature : -10~50Celcius (Working), -40~80Celcius (Storage)

Wireless HD Receiver:

Specifications:
Frequency : 5GHz
Transmission Power : -70dBm
Antenna : External antenna×5
Band width : 40MHz
Video Formats : 1080p 23.98/24/25/30/50/60, 1080psf23.98/24/25, 1080i50/59.94/60, 720p 50/59.94/60, 576p 576i 480p 480i
Audio Fromats : PCM, DTS-HD, Dolby TrueHD
Transmission Distance : 700m(clear transmission)
Interface : 3G-SDI IN;HDMI IN;SDI IN; SDI LOOP; Mini USB; POWER SWITCH; LEMO(OB/2core); POWER IN; RPSMA Antenna; Power Switch
Mounting Interface : 1/4 inch screw, V-mount
LCD screen dispaly : Frequency;Channel;etc.
Working Voltage : DC 6V-17V
Power Consumption : 12W
Dimensions : 155×111×32mm
Temperature : -10~60Celcius (Working), -40~80Celcius (Storage)
