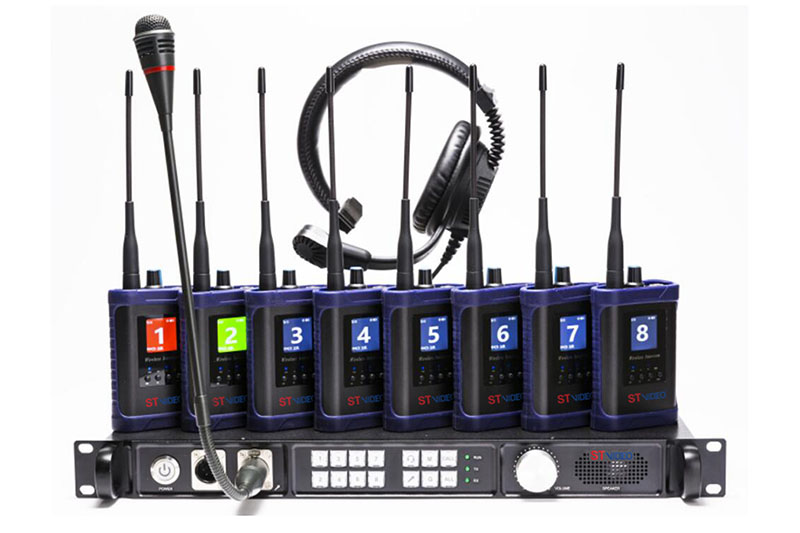

The STW-BS1000 is specially designed for the purpose of on-site multi-department joint work command and dispatch call. It is divided into command dedicated channel and 8 common channels to form an 8-channel full-duplex voice dispatch system. The command host can initiate voice calls at any time and can select the extension that allows the call. Allow staff to be divided into groups according to departments, each group is free to make two-way calls without affecting other departments.
Compatible with Cabling and Wireless Intercom. Clear com, RTS, Telex, Panasonic, Sony, datavideo, bmd, Roland, for-a, vmix etc.
--400 ~ 470 Mhz, 470~530Mhz, 868~870Mhz, 902~928Mhz frequency optional. low power, low radiation, energy saving.
--8-channel full-duplex wireless digital circuit, editable encryption, strong anti-interference. Be ready to use at any time, no need to match frequency.
--Transmission distance up to 2000M (open area), crossing floors up to 6~8 floors, ensure the on-site calls smoothly.
--Wireless Tally (optional)
--Built-in integrated battery, 8-10 working hours
--Group function, can divide extensions up to 8 groups according to departments. Improving command and communication efficiency
--With echo elimination function, make sure the call quality.
--Background noise suppression, adjustable microphone sensitivity, ideal for noisy environments
--With extension isolation function, improving efficiency of guidance and command management.
--Extensions numbers can be increased without barriers, ready to use at any time.
--1.4inch LCD display, real-time display and working status setting.
--Off-network working is available , extensions can still communicate while the host is off.
--Microphone return can be turned on/off at any time, return volume can be adjusted in ten levels.
--Supports goose-neck, head-mounted and wired input microphone modes (can be used in conjunction with other limited products)
Frequency Range | 400-470Mhz |
Distance | Up to 2000M (open area) |
Transmission Power | ≤1W |
Host size/weight | 440x255x44mm / 2kg |
Number of extensions the host can support | No limits |
Host supported call type | Individual call、group call、free to choose |
Host supported number of Tally | 12 channel red-green two-tone |
Host supported switcher | Panasonic / Sony / Datavideo / BMD / Other brands.. |
Extension size/weight | 25x70x102mm / 220g |
Extension battery | 3.7v lithium ion rechargeable battery with a capacity of about 5000mAh |
Extension standby power consumption | 40mW / 10mA |
Extension standby time | 15~20 days |
Extension call duration | 8~10 hours |
Number of channels | 90pcs |
Sensitivity | -110dbm |
Encryption | 32 bit communication password |
Digital speech coding | 8K Sampling rate 16bits accuracy |
