STW5002 wireless transmission

STW5002 is a set of 2 transmitter and one receiver full-HD audio and video wireless

transmission system. The 2 video channel transmission shares one wireless

channel and supports the highest video resolution up to 1080P/60Hz.This system is based on 5G wireless network technology for transmission,along with advanced 4×4 MIMO and Beam-Forming technology. Image processing is performed using H.264 coding-decoding technology,and the video quality is sharp and the latency is lower.

Specification
ITEM DATA
Antenna 4*4MIMO 5dBi External antenna
Frequency 5.1~5.8GHz
Transmission Power 17dBm
Advanced Features Beamforming
Audio Format PCM, MPEG-2
Bandwidth 40MHz
Power consumption 12W
Transmission range 300m(video code rate: 15Mbps per channel )  500m(video code rate: 8Mbps per channel)
Power Supply DC12V/2A(7~17V)
Product Size 127(L)*81(W)*37(H)
Temperature -10~50℃(working);-20~80℃(storage)

Product Detail

Product Tags

Introduction

STW5002 is a set of 2 transmitter and one receiver full-HD audio and video wireless

transmission system. The 2 video channel transmission shares one wireless

channel and supports the highest video resolution up to 1080P/60Hz.This system is based on 5G wireless network technology for transmission,along with advanced 4×4 MIMO and Beam-Forming technology. Image processing is performed using H.264 coding-decoding technology,and the video quality is sharp and the latency is lower.

The transmitter comes with the Sony NP-F type battery dock and has preassembled V-mount connector. The receiver has preassembled V-mount battery plate and V-mount connector.

Key Features

• Live broadcast video transmission solution - 2 Transmitters-to-1 Receiver wireless

transmission system

• Long distance transmission, up to 700m range with less than 70ms latency.

• 2TX-to-1RX; Tally function; support 2 channels HD video transmission

simultaneously in 1 RF channel.

• Provide a seamless connection between RX and video switcher.

• Support both SDI and HDMI interface

• Convenient operation and flexible application, eliminate the hassle of running

wires for multi-position.

Specifications:

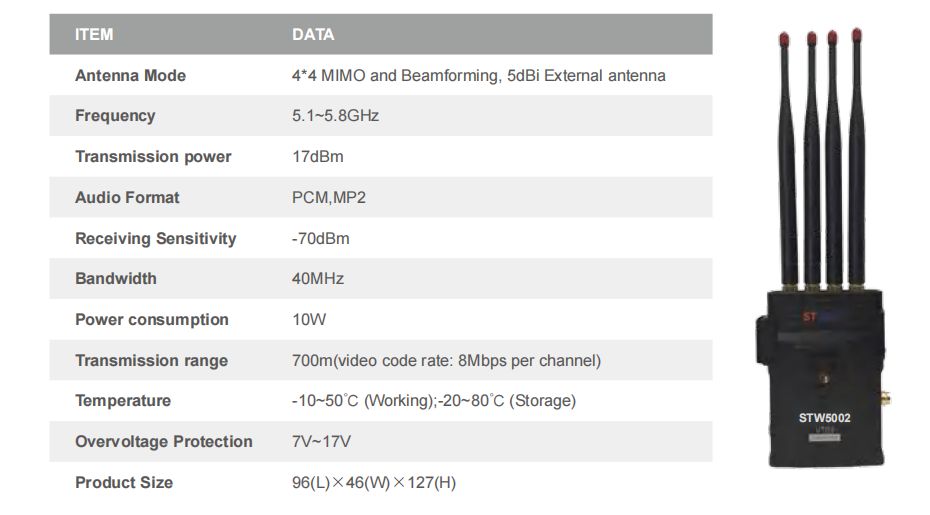

d1

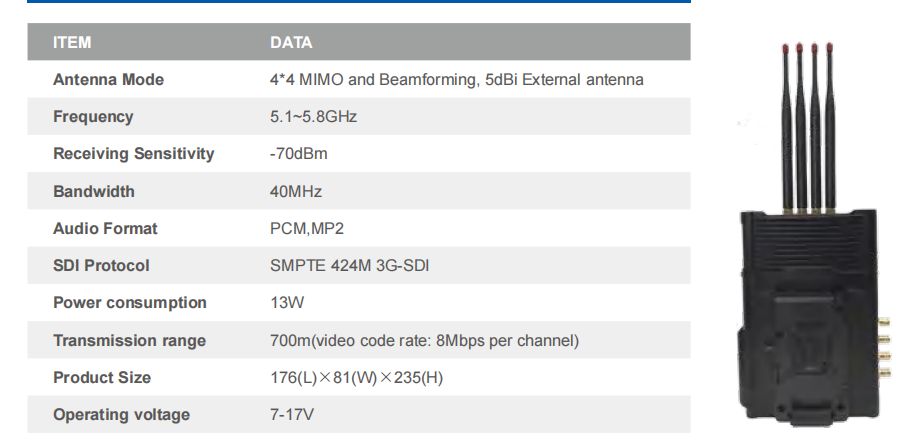

d2
