STW5004 wireless transmission
Introduction

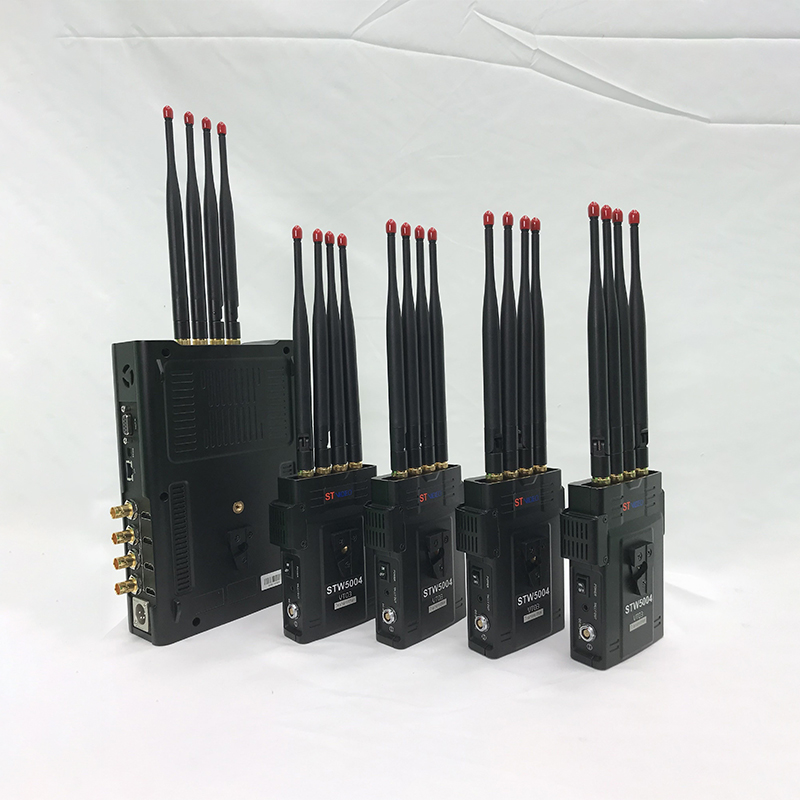

STW5004 wireless transmission includes four transmitters and one receiver. This system allows you to send four 3G-SDI and HDMI signals to the receiver simultaneously over a range up to 1640'. The receiver features four SDI and four HDMI outputs. Signals up to 1080p60 can be transmitted with a latency of 70 ms over one RF channel on the 5.1 to 5.8 GHz frequency. Four-channel transmission takes up only one RF channel, improving channel redundancy and supporting channel sweeping, allowing you to easily hold the current environment and help you use the best channel accurately. The system also offers tally and RS-232 interface, and all five units confirm transmission status via OLED displays. The Tally and PTZ control technology provides flexible wireless solutions for your studio system, allowing your studio system to adapt to a wide range of events and ensure efficient production operations.
The transmitters are designed with a Sony-type battery dock on the rear and include a preinstalled V-mount on the front, while the receiver comes with an attached V-mount plate. The entire set can also be powered continuously. A power adapter is included for the receiver, and four cables are supplied for powering the transmitters off compatible batteries.
Key Features
• 4Tx to 1Rx, support 3G-SDI and HDMI
• 1640' line-of-sight transmission range
• 70 ms latency
• 5.1 to 5.8 GHz frequency
• Tally input/output
• Transmitters with L-series plate on the back, V-mount on the front
• Receiver with V-mount plate
• Supports IP streaming (RSTP)
• RS-232 data transmission
Specifications:
Transmitter
| Connections | 1 x 3G-SDI Input 1 x HDMI Input 1 x Tally Output 1 x RS-232 Output 1 x Power |
| Resolution Supported | Up to 1080p60 |
| Transmission Range | 1640' / 500 m Line of Sight Video Code Rate: 8 Mb/s per Channel |
| Antenna | 4x4 MIMO and Beamforming |
| Transmission Power | 17 dBm |
| Frequency | 5.1 to 5.8 GHz |
| Latency | 70 ms |
| Operating Voltage | 7 to 17 V |
| Audio Formats | MPEG-2, PCM |
| Power Consumption | 10 W |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | -4 to 176°F / -20 to 80°C |
| Dimensions | 3.8 x 1.8 x 5.0" / 9.6 x 4.6 x 12.7 cm |
Receiver
| Connections | 4 x 3G-SDI Outputs 4 x HDMI Outputs 1 x Tally Input 1 x RJ45 Output 1 x RS-232 Input 1 x Power |
| Resolution Supported | 1080p60 |
| Antenna | 4x4 MIMO and Beamforming |
| Receiving Sensitivity | -70 dBm |
| Frequency | 5.1 to 5.8 GHz |
| Bandwidth | 40 MHz |
| Transmission Range | 1640' / 500 m Line of Sight Video Code Rate: 8 Mb/s per Channel |
| Audio Formats | MPEG-2, PCM |
| Operating Voltage | 7 to 17 V |
| Power Consumption | 20 W |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | -4 to 176°F / -20 to 80°C |
| Dimensions | 6.9 x 3.2 x 9.3" / 17.6 x 8.1 x 23.5 cm |
Packaging Info
| Package Weight | 19.9 lb |
| Box Dimensions (LxWxH) | 16.8 x 12.4 x 6.8" |
