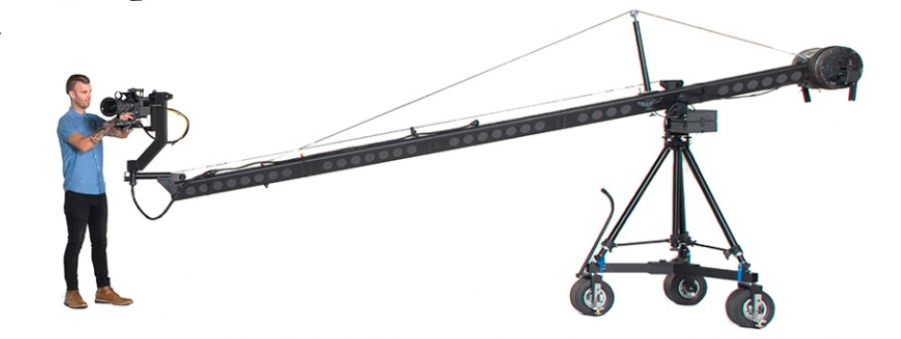

Triangle Jimmy Jib Pro 40FT

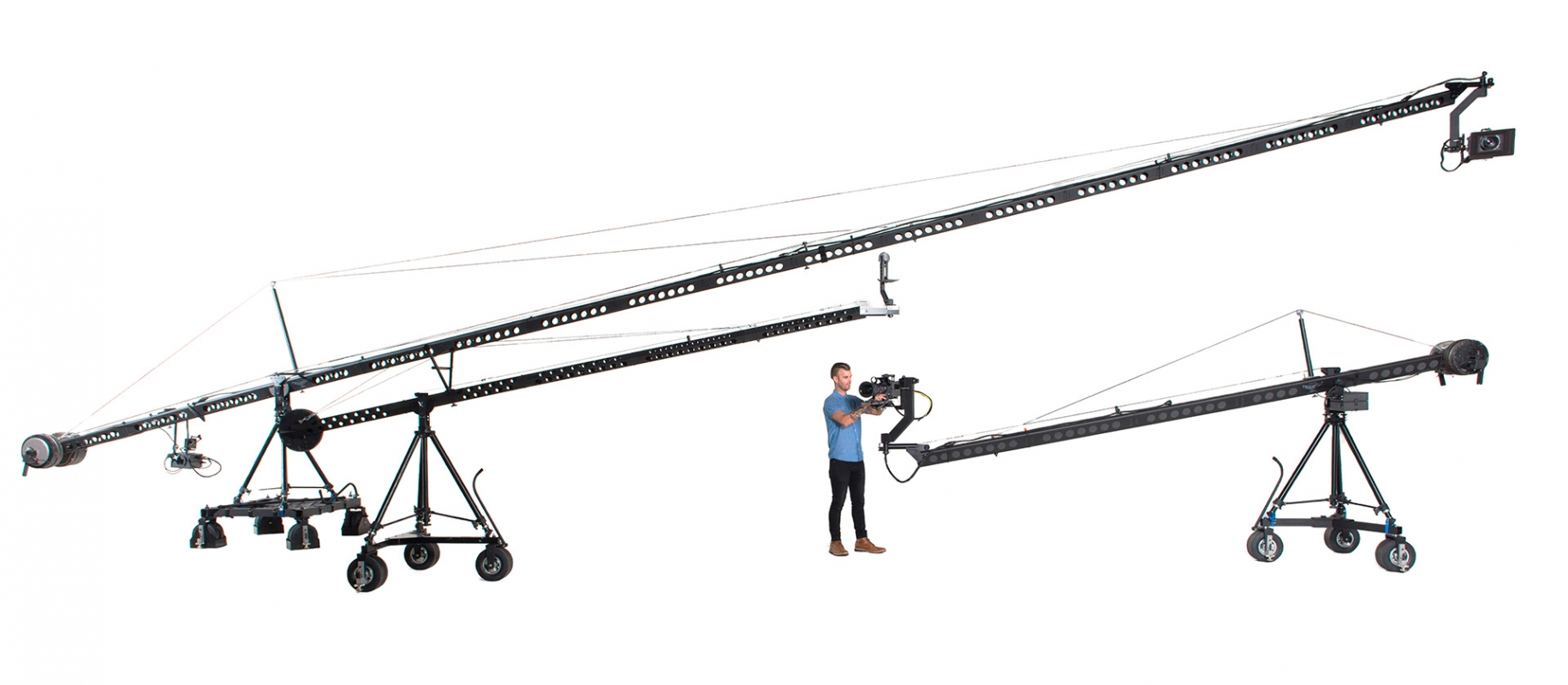

| Model | Full Length | Reach | Height | Max Payload |
| TRIANGLE PRO STANDARD 3-wheel | 3m (9.8ft) | 1.8m (6ft) | 3.9m (12.8ft) | 22.6kg |
| TRIANGLE PRO GIANT 3-wheel | 5m (16.5ft) | 3.6m (11.8ft) | 5.7m (18.7ft) | 22.6kg |
| TRIANGLE PRO SUPER 3-wheel | 8m (26ft) | 5.4m (17.7ft) | 7.6m (25ft) | 22.6kg |
| TRIANGLE PRO SUPER Plus 3-wheel | 10m (33ft) | 7.3m (24ft) | 9.1m (30ft) | 22.6kg |
| TRIANGLE PRO SUPER PLUS 4-wheel | 10m (33ft) | 7.3m (24ft) | 9.1m (30ft) | 22.6kg |
| TRIANGLE PRO EXTREME 3-wheel | 12m (39ft) | 9.1m (30ft) | 10.6m (35ft) | 22.6kg |
| TRIANGLE PRO EXTREME 4-wheel | 12m (39ft) | 9.1m (30ft) | 10.6m (35ft) | 22.6kg |
The strength of the Jimmy Jib it is the “reach” of the crane arm that becomes the important factor in creating interesting and dynamic compositions plus allowing the operator to raise the camera above obscuring power-lines or animated concert goers – thus allowing for a clear, high wide shot if need be.
How low can it go?
With the “Triangle” Jimmy Jib set up in an “under-slung” configuration, the camera can be made to rest almost directly off the floor – making the minimum lens height about 20 centimeters (8 inches). Of course, if you’re willing to dig a hole, cut away a section of the set or shoot on a platform this minimal lens height can be reduced.
How long does it take to rig the Jimmy Jib?
How easily can the Jimmy Jib be moved between locations?

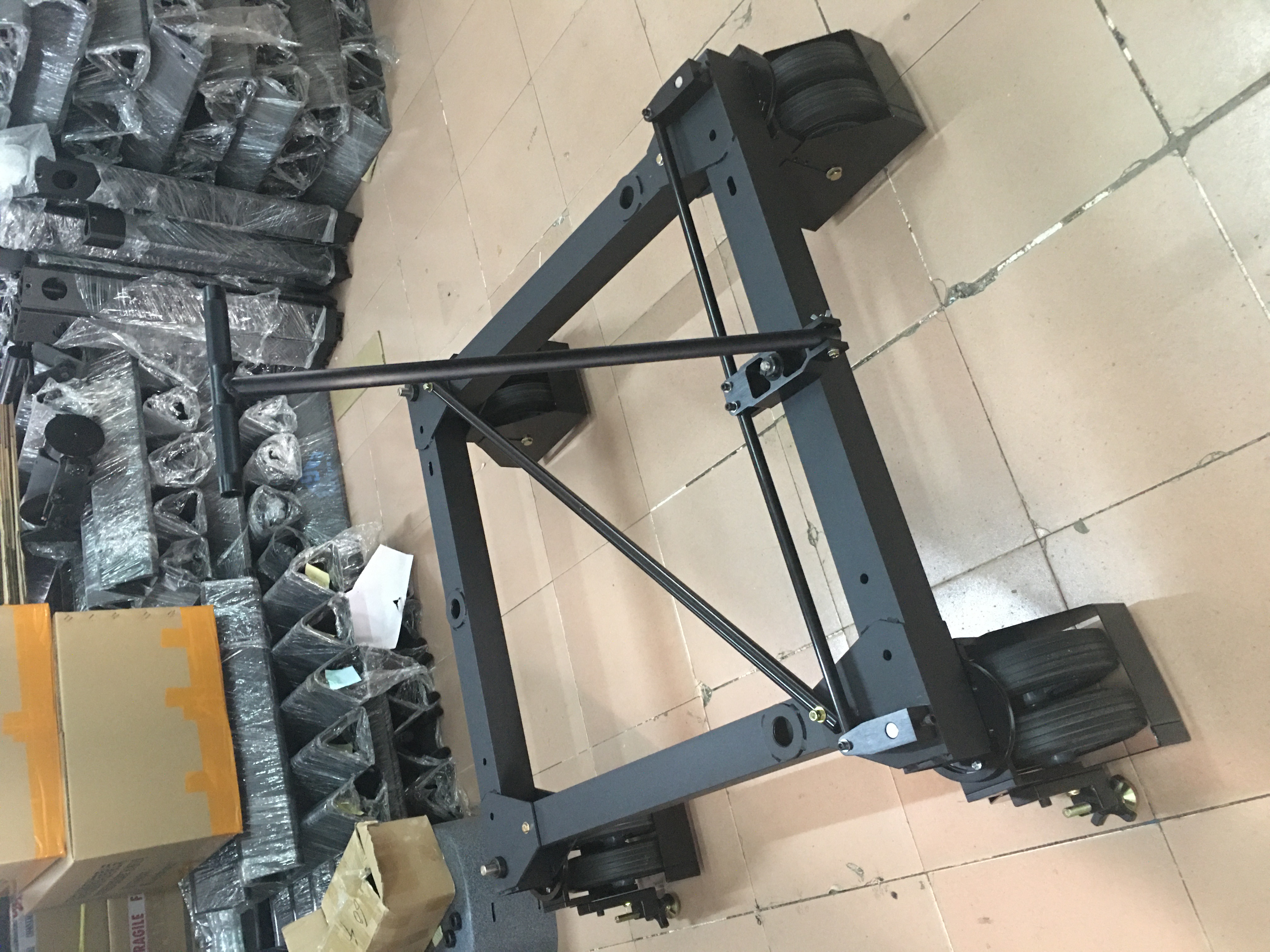

After the initial build, the Jimmy Jib can be repositioned easily across level and clear ground on itʼs wheeled base. If the location doesnʼt have level terrain then a rebuild can take from 30mins+, depending on distance and conditions.
